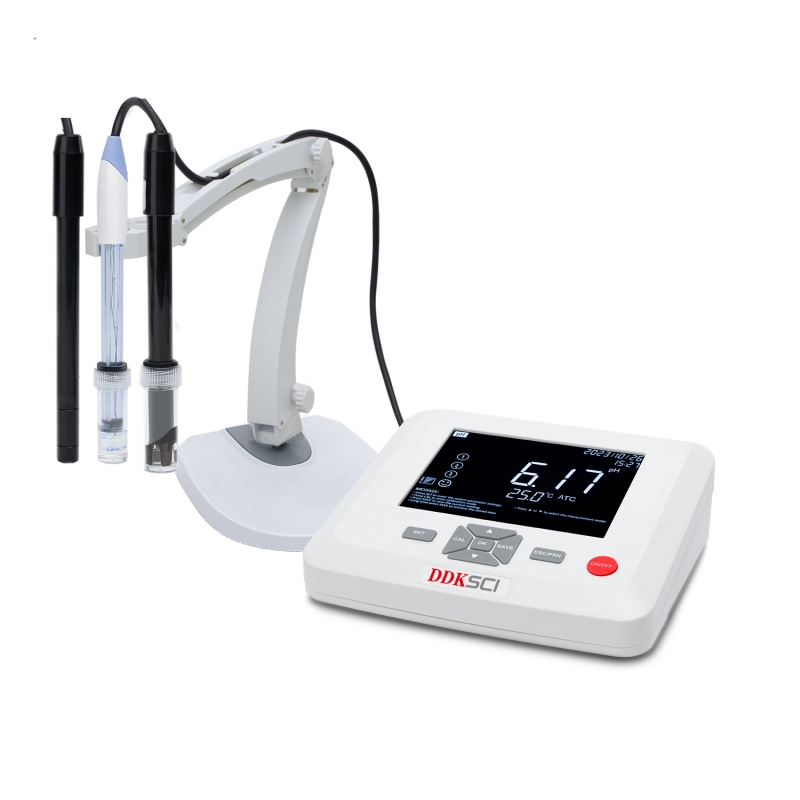

PCD100

Packing including

1.PCD100 Meter

2.201T ATC pH probe

3.pH buffer solution: pH4.00/7.00/10.01, 50mL, one for each

4.CON201T Plastic ATC Cond probe, K=1.0

5.Standard Cond solution: 50mL: 84μS/1413μS/12.88mS/cm, one for each;

6.DO01-2M Polarographic DO probe, cable length: 2m

7.DOS-01 Membrane refill solution: 30mL,1pc

8.DOSC Sensor caps: 3pcs/group, 1pkg

9.F01 Flexible probe Holder: 1pc

10.A01 Power adaptor:1pc

Features
Parameter
Make an inquiry

· High-resolution LCD display screen.

· With built-in microprocessor chip, automatic calibration, automatic temperature compensation, data storage, parameter setup, etc.

· Automatic calibration, self-diagnosis, automatically recognizing standard buffer solutions,stable reading display.

· Cal points: pH: 1-3pts; conductivity: 1pt. DO: 100%Oxyegn or Zero oxygen calibration.

· Each kit comes with an ATC pH probe, a plastic ATC Cond electrode, polarographic type DO probe and 3pcs replaceable sensor caps.

· IP54 dustproof and spillproof.

pH

Range:（-2.00-20.00）pH

Resolution:0.01/0.1 pH

Accuracy:±0.01 pH ±1digit

Cond.

Range:0-200.0mS/cm, auto divided by range of：0-19.99μS/cm; 20.0-199.9μS/cm;

200-1999μS/cm; 2.00~19.99mS/cm; 20.00-199.9mS/cm;

TDS: 0 -100.0g/L, Resistivity：5.00Ω·cm-100.0MΩ·cm, Salinity：0-100.0 ppt

Resolution 0.001

Accuracy ±1.0 % FS±1digit

DO

Range: 0-20.00 mg/L（ppm）, 0-200.0 %

Accuracy/Resolution:± 0.30 mg/L； 0.01 or 0.1 mg/L

ATC range :（0 - 50）℃ automatically

Salinity compensation:0~45 ppt manual

Barometric compensation:0~200.0 kPa automatically

Temperature

Range:0 -100.0°C （32.0-212.0℉）

Resolution/Accuracy:0.1℃; ±0.2℃

Data storage:450groups

Data Output

1.USB to Flash Disk

2.Wireless connection to printer (the printer is optional)

Power supply:DC12V
