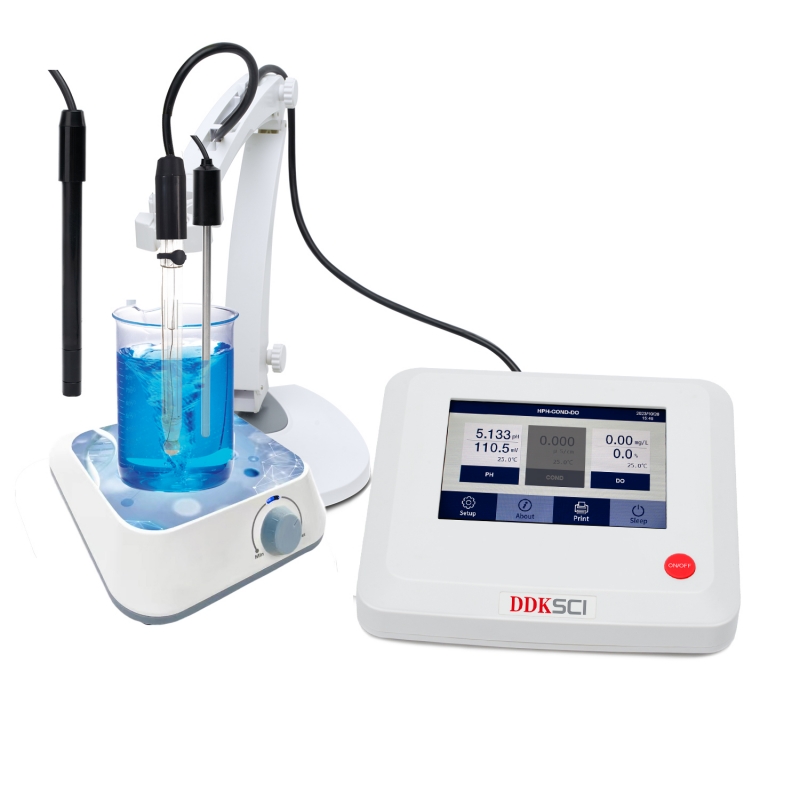

PD100T

Packing including

1.PD100T Meter

2.201G Refillable glass pH probe: 1pc

3.Temp-01 Stainless steel probe: 1pc

4.pH buffer solution: pH4.00/7.00/10.01, 50mL, one for each

5.DO01-2M Polarographic DO probe, cable length: 2m

6.DOS-01 Membrane refill solution: 30mL,1pc

7.DOSC Sensor caps: 3pcs/group, 1pkg

8.F01 Flexible probe holder: 1pc

9.Magnetic stirrer: 1pc

10.PC cable: 1pc

11.A01 Power adaptor

  • Features
  • Parameter
  • Make an inquiry

    l With built-in microprocessor chip, intelligent and high accuracy.

    l 7" TFT Touch screen, easy reading and operation

    l With calibration guide, automatic calibration, automatic temperature compensation, data storage, parameter setup, etc.

    l Self-diagnosis functions, automatically recognizing standard buffer solutions.

    l Cal points: pH calibration points: 1-5 pts; DO: 100%Oxygen or Zero oxygen calibration.

    l Fast response, stable reading display.

    l The kit comes with a combination glass electrode, stainless steel temp probe, and an ATC DO probe, can display the pH/DO simultaneously.

    l IP54 dustproof and spillproof.

    pH

    Range : (-2.000-20.000) pH

    Resolution : 0.01/0.001 pH

    Accuracy : ±0.002pH ± one digit

    Calibration points : 1-5pts, automatically

    ATC range : 0-100 ℃(32.0-212.0℉)

    DO

    Range :  0-20.00 mg/L(ppm), 0-200.0 %

    Accuracy : ± 0.30 mg/L

    ATC range : (0 - 50)℃` automatically

    Salinity compensation  : 0-45 ppt manual

    Barometric compensation : 0-200.0 kPa automatically

    mV(ORP probe optional)

    Range : -1,999mV -+1,999mV

    Resolution : ± 0.1/1mV

    Accuracy : ±0.03% FS ± one digit

    Temperature

    Range : -10.0 -135.0°C (14.0-275.0℉)

    Resolution/Accuracy : 0.1℃/ ±0.2℃

    Data storage : 1000groups

    Data transfer:

    1.USB stick

    2.PC

    3.Bluetooth connection to printer (the printer is optional)

    Power supply : DC12V

With built-in microprocessor chip, intelligent and high accuracy.

l 7" TFT Touch screen, easy reading and operation

l With calibration guide, automatic calibration, automatic temperature compensation, data storage, parameter setup, etc.

l Self-diagnosis functions, automatically recognizing standard buffer solutions.

l Cal points: pH calibration points: 1-5 pts; DO: 100%Oxygen or Zero oxygen calibration.

l Fast response, stable reading display.

l The kit comes with a combination glass electrode, stainless steel temp probe, and an ATC DO probe, can display the pH/DO simultaneously.

l IP54 dustproof and spillproof.
